30×40 North Facing 3BHK Duplex (G+1) House Plan
A 2,400 sq ft north-facing G+1 duplex 30 ft along the road and 40 ft deep, with living room, dining, kitchen, pooja room, 3 bedrooms, 3 toilets and staircase. Drawn by the VARAIPADAM planner, with the pooja room, kitchen and master bedroom checked against their Vastu zones.
Customise this plan for your plotFree. Opens with these rooms: change the size, facing or any room, and get five options.
Updated 14 October 2026
- Plan size
- 30 × 40 ft
- Along the road
- 30 ft (north)
- Built-up area
- 2,400 sq ft
- Bedrooms
- 3
- Toilets
- 3
- Floors
- G+1
Room sizes
| Room | Size | Area | Zone |
|---|---|---|---|
| Staircase · ground | 6'6" × 12'6" | 81 sq ft | north-east |
| Living Room · ground | 13'6" × 12'6" | 169 sq ft | north |
| Kitchen · ground | 7'6" × 12'6" | 94 sq ft | north-west |
| Bedroom · ground | 10'6" × 11'6" | 121 sq ft | south-east |
| Pooja · ground | 4'0" × 5'6" | 22 sq ft | south |
| Dining · ground | 9'0" × 11'6" | 104 sq ft | south-west |
| Common Toilet · ground | 4'0" × 7'6" | 30 sq ft | south-west |

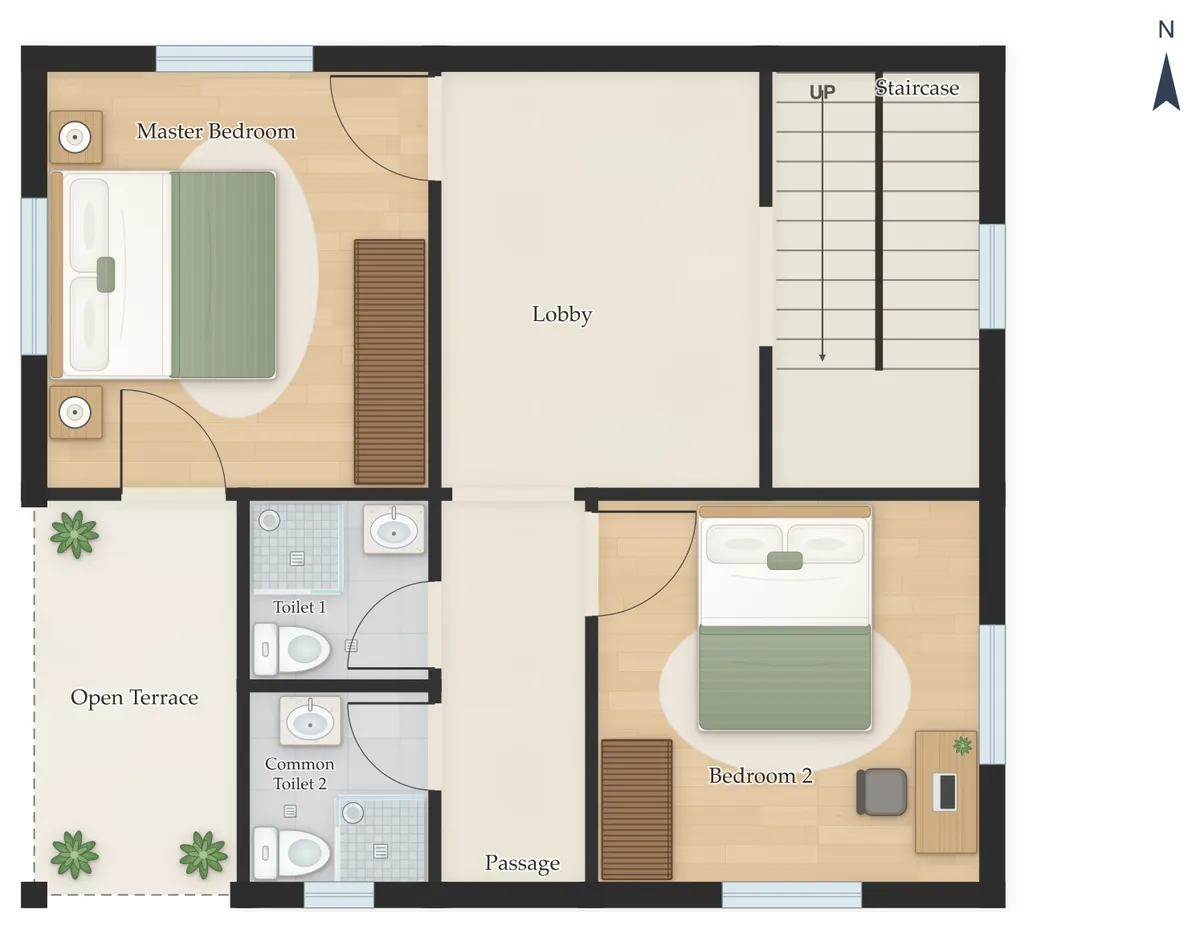

| Staircase · first | 6'6" × 12'6" | 81 sq ft | north-east |
| Master Bedroom · first | 11'6" × 12'6" | 144 sq ft | north-west |
| Bedroom 2 · first | 11'6" × 11'6" | 132 sq ft | south-east |
| Common Toilet 1 · first | 5'6" × 5'6" | 30 sq ft | west |
| Common Toilet 2 · first | 5'6" × 6'0" | 33 sq ft | south-west |
| Open Terrace · first | 6'0" × 11'6" | 69 sq ft | south-west |
Vastu check
- Pooja in the south, not its ideal zone. Move it in the editor if Vastu matters to you.
- Kitchen in the north-west, a traditional zone for it.
- Master bedroom in the north-west, not its ideal zone. Move it in the editor if Vastu matters to you.
For a north-facing plot, tradition puts the main door on the north side toward the north-east half. North light is soft and steady through the day, good for the living room and study.
Vastu for a north facing house →Questions about this plan
How many square feet is a 30×40 house?
30 × 40 ft is 1,200 sq ft (133.3 sq yards) per floor, so this G+1 duplex has about 2,400 sq ft over two floors. Leave setbacks as your local building rules require: on a plot of exactly this size, the house itself will be a little smaller.
Is this north facing plan Vastu compliant?
1 of the 3 key rooms sit in their traditional Vastu zone: pooja in the south (not the ideal zone), kitchen in the north-west, master bedroom in the north-west (not the ideal zone). You can move any room in the free editor.
Can I change this plan?
Yes. Open it in VARAIPADAM to change the plot size, facing or room list. The planner draws five new options, and you can move rooms, view the house in 3D and download PDF, DXF, IFC and 3D files.
