30×40 West Facing 3BHK Duplex (G+1) House Plan
A 2,400 sq ft west-facing G+1 duplex 30 ft along the road and 40 ft deep, with living room, dining, kitchen, pooja room, 3 bedrooms, 3 toilets and staircase. Drawn by the VARAIPADAM planner, with the pooja room, kitchen and master bedroom checked against their Vastu zones.
Customise this plan for your plotFree. Opens with these rooms: change the size, facing or any room, and get five options.
Updated 14 October 2026
- Plan size
- 30 × 40 ft
- Along the road
- 30 ft (west)
- Built-up area
- 2,400 sq ft
- Bedrooms
- 3
- Toilets
- 3
- Floors
- G+1
Room sizes
| Room | Size | Area | Zone |
|---|---|---|---|
| Dining · ground | 12'6" × 8'6" | 106 sq ft | south-west |
| Living Room · ground | 12'6" × 12'0" | 150 sq ft | west |
| Staircase · ground | 12'6" × 6'6" | 81 sq ft | north-west |
| Kitchen · ground | 11'6" × 8'6" | 98 sq ft | south-east |
| Common Toilet · ground | 7'6" × 4'0" | 30 sq ft | east |
| Bedroom · ground | 11'6" × 10'6" | 121 sq ft | east |
| Pooja · ground | 5'6" × 4'0" | 22 sq ft | north-east |

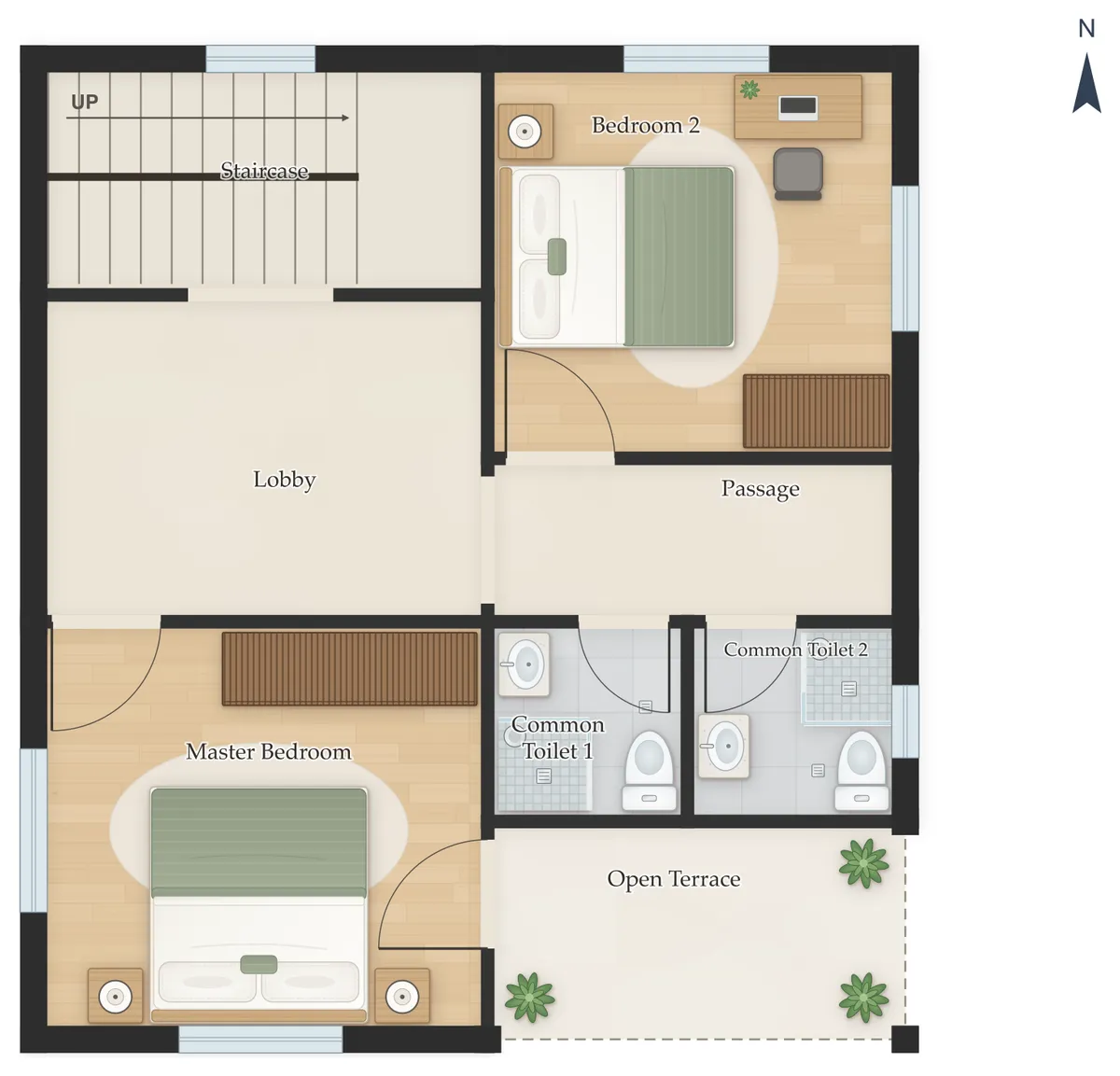

| Staircase · first | 12'6" × 6'6" | 81 sq ft | north-west |
| Master Bedroom · first | 12'6" × 11'6" | 144 sq ft | south-west |
| Open Terrace · first | 11'6" × 6'0" | 69 sq ft | south-east |
| Common Toilet 1 · first | 5'6" × 5'6" | 30 sq ft | south |
| Common Toilet 2 · first | 6'0" × 5'6" | 33 sq ft | south-east |
| Bedroom 2 · first | 11'6" × 11'0" | 127 sq ft | north-east |
Vastu check
- Pooja in the north-east, a traditional zone for it.
- Kitchen in the south-east, a traditional zone for it.
- Master bedroom in the south-west, a traditional zone for it.
For a west-facing plot, tradition puts the main door on the west side toward the north-west half, away from the south-west corner. Shade west windows from the strong afternoon sun.
Vastu for a west facing house →Questions about this plan
How many square feet is a 30×40 house?
30 × 40 ft is 1,200 sq ft (133.3 sq yards) per floor, so this G+1 duplex has about 2,400 sq ft over two floors. Leave setbacks as your local building rules require: on a plot of exactly this size, the house itself will be a little smaller.
Is this west facing plan Vastu compliant?
3 of the 3 key rooms sit in their traditional Vastu zone: pooja in the north-east, kitchen in the south-east, master bedroom in the south-west. You can move any room in the free editor.
Can I change this plan?
Yes. Open it in VARAIPADAM to change the plot size, facing or room list. The planner draws five new options, and you can move rooms, view the house in 3D and download PDF, DXF, IFC and 3D files.
